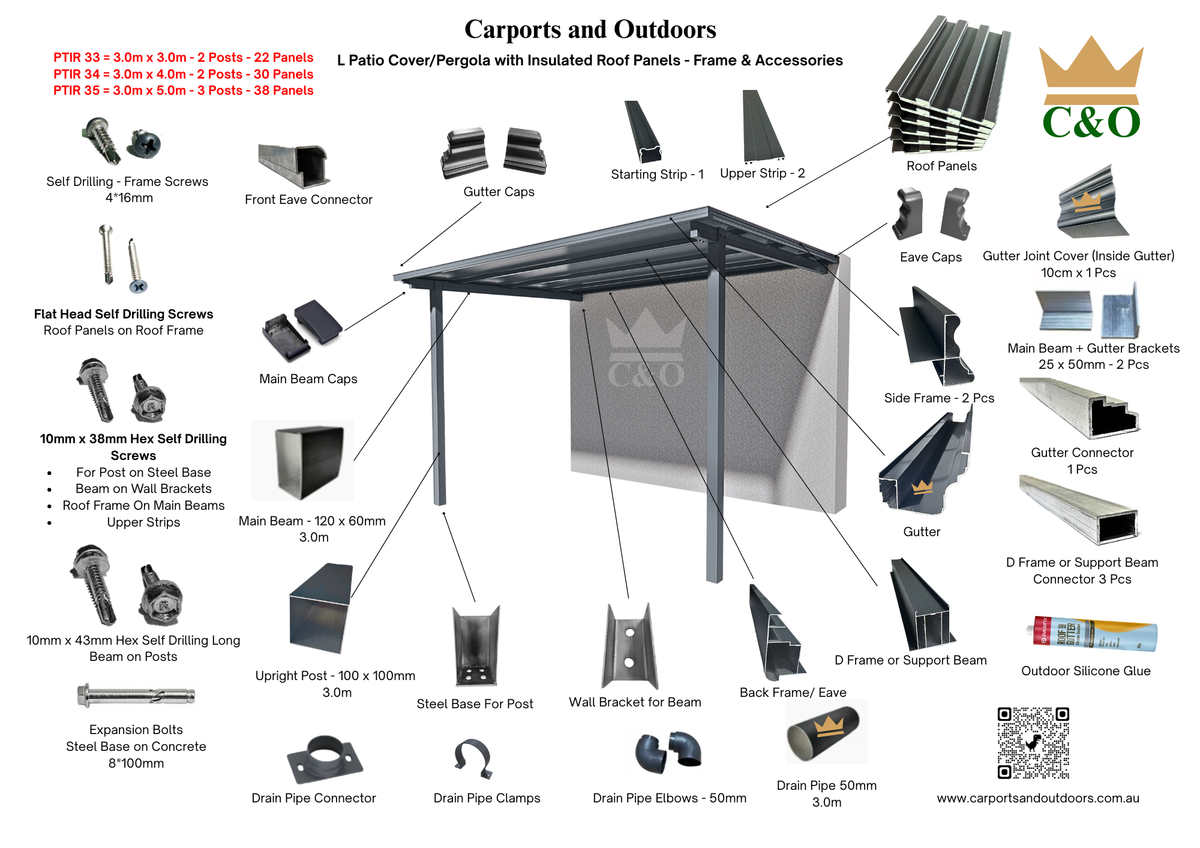

Insulated Patio and Pergola's Parts & Accessories

  • Our Patio and Pergola parts are engineered for strength and longevity.

    We use premium-grade parts and heavy-duty hardware to deliver superior strength for Australian conditions. Featuring steel bases and wall brackets, insulated roof panels, thicker aluminium profiles.
Explore Sizes & Current Prices

PTIR Information Page

This page will provide you comprehensive information about our Patios and Pergolas with Insulated Roof Panels

A PDF instruction guide & a video link will be provided for a smooth installation experience.

This Patio or Pergola structure must be attached to the wall on one side.

If you're unsure about the installation, it’s wise to consult a professional before moving forward.

Carports and Outdoors cannot be held liable for any damage or mishaps that may occur.

Standard Sizes with Insulated Roof Panels:

  • Size: Width 3.0m x Length 3.0m with 2 Posts = 125 Kg
  • Size: Width 3.0m x Length 4.0m with 2 Posts = 155 Kg
  • Size: Width 3.0m x Length 5.0m with 3 Posts = 200 Kg
  • Standard Post: 3.0m High


Posts Installation

Posts can be installed in two ways:

On Concrete Slab Installation:

Secure the steel base to the concrete slab using the supplied dynabolts. Trim the post to your required height. Ensure the concrete slab is at least 100 mm thick.

or

On Conceret Footing installation:

Prepare a Footing hole of the appropriate size and fill it with concrete. Allow a minimum of 24 hours for the concrete to fully cure before installing the post on it.

  • Footing Size:  30 × 30 × 60 cm


Post Placement

The position of posts for Patio or Pergolas is a little flexible. You can move them a little if needed, keeping the gap between the posts recommended as below:


PTIR - Patio / Pergola with Insulated Roof Panels

PTIR 3.0m x 3.0m - 2 Posts: The gap should be between 2.4m and 2.6m.

PTIR 3.0m x 4.0m - 2 Posts: The gap should be between 3.2m and 3.6m.

PTIR 3.0m x 5.0m - 3 Posts: The gap should be between 2.0m and 2.2m




FAQs for Patio with Aluminium Insulated Panels

Can the post height be reduced/adjusted?
Yes, standard posts height is 3.0m and customer can cut them short from the bottom end.

Can we install the Patio on a slope?
Yes definitely. By cutting one post shorter than the other, the level of the slope can be managed to have desired roof level.

Are the gutter and drain pipe included in the kit?
Yes, gutter, drain pipe, connector and elbows are included in the kit.

Can installed post height be higher than 2.5m?
Yes, make sure Top of the Beam on the wall side is 12cm higher than the post height.

Aluminium Insulated Patio Installation Video
